测区域面积
通过在地图上标记点，围成多边形后，给出该多边形区域的实际地里面积。
交互设计

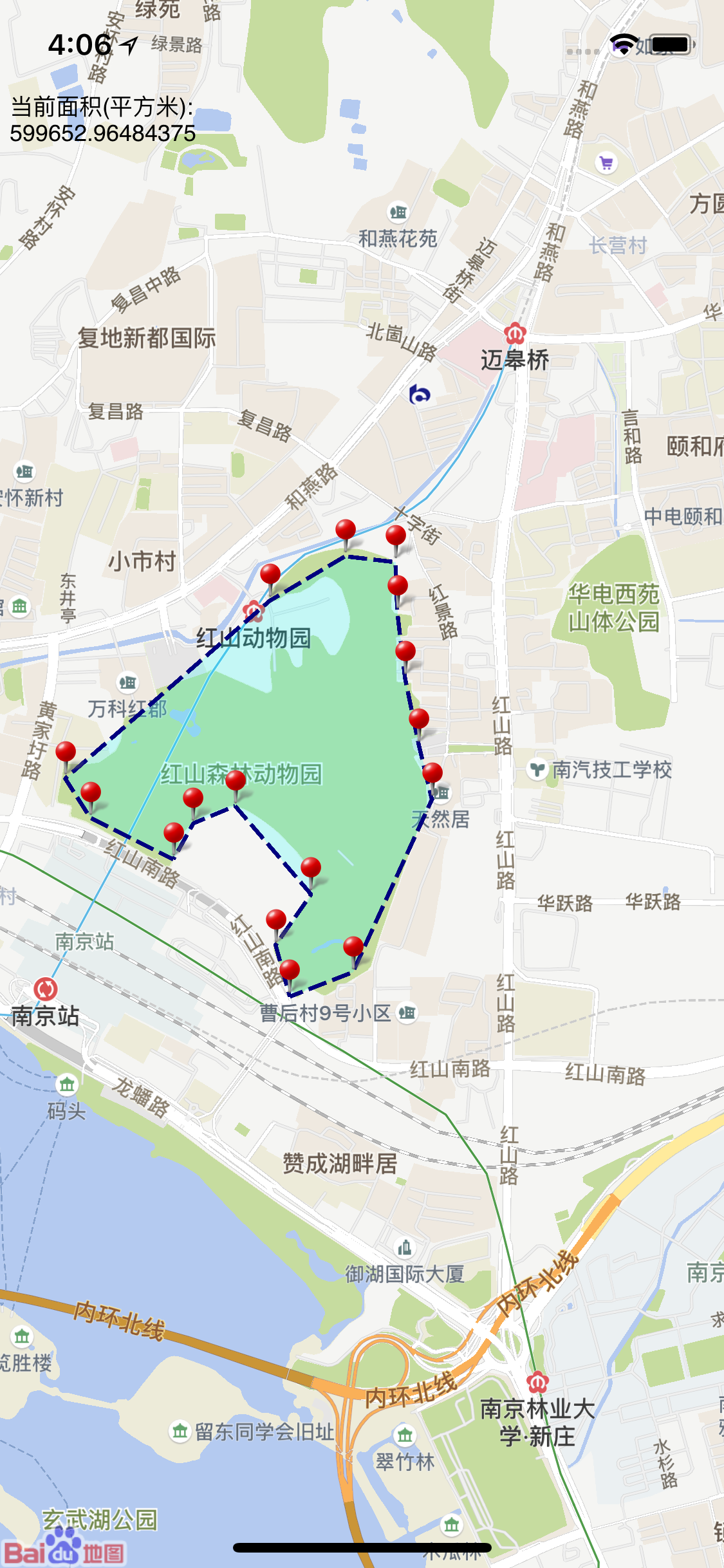

- 长按标点，点之间连线围成区域。
keyword
- 多边形面积计算
- 地图绘制线和面
- equator(赤道), merdian(经线)
- Tissot’s indicatrix
- Mercator projection
- Sinusoidal projection
方法
- 通过经纬度转换成平面坐标后再计算多边形面积(选用该方法)
- 通过经纬度直接计算球面围成的多边形面积
地图投影类型
Carl Friedrich Gauss得出一个球面无法在一地图上进行无损展示(a sphere’s surface cannot be represented on a map without distortion)。
所以根据损失类型来分类的话主要有以下三种类型:
- Equal-area projections(等面积投影)
- Conformal projections(保角投影)
- Conventional projections(以上两种都有)
Mercator projection

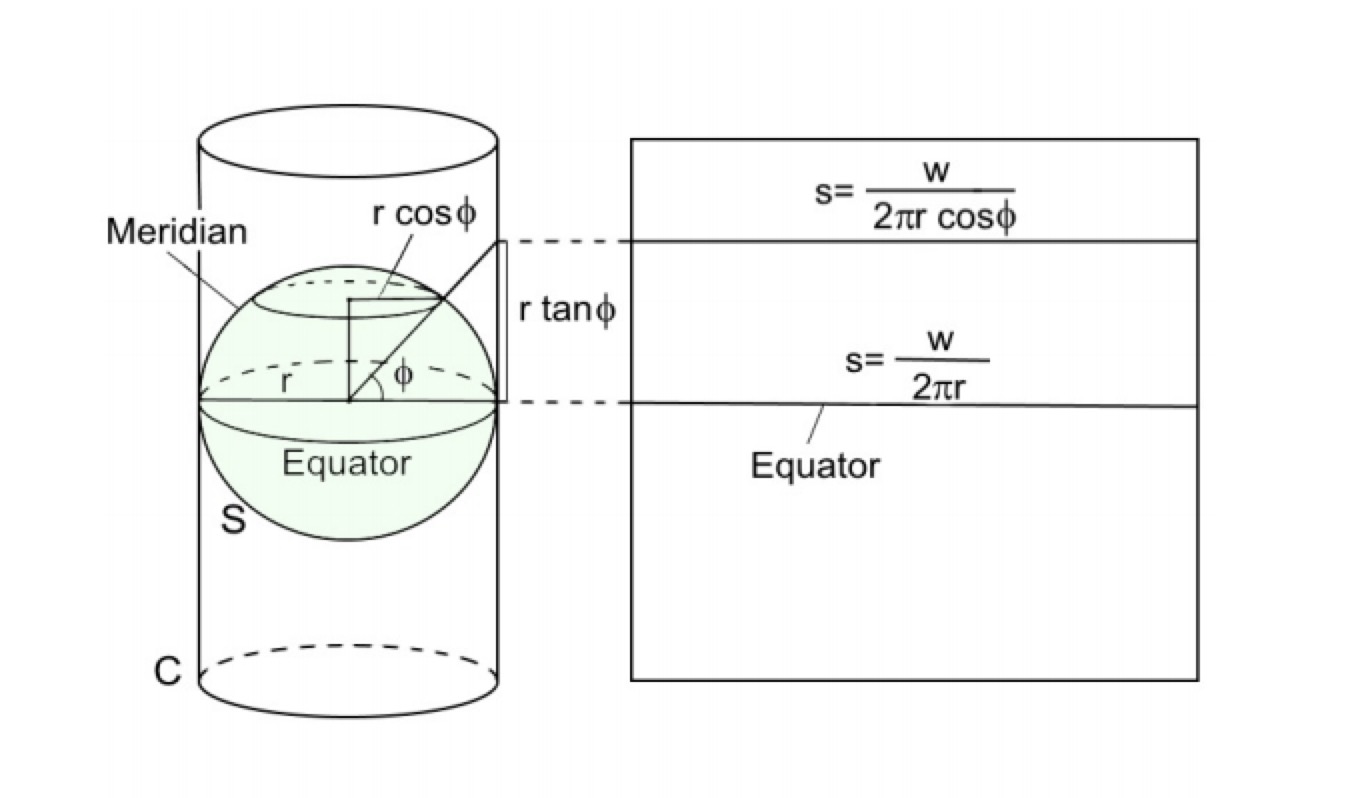

通过圆心投影到圆柱上后，平铺圆柱，形成平面坐标。特点是:非等面积，不是适合用于面积计算, 常用于地图导航上面
以下假设 $\phi$ 和 $\lambda$ 都是弧度单位,$\lambda = 0$的时候处在格林威治子午线, $\phi = 0$处在赤道
在equator(赤道)处水平比例应该是 $s = w/(2\pi R)$
在latitidue(纬度)为 $\phi$ 的位置时，水平比例:
$$ s _ { h } = \frac { w } { 2 \pi R \cos \phi } = s \sec \phi
$$
x轴:
$$ x = \frac { w \lambda } { 2 \pi }
$$
y轴:
$$ y = f ( \phi )
$$
特别的，当周长等于地图的宽度时($2\pi R = w$), $y = R\tan \phi$
在球面上$\phi$和$\phi_{1}$所对应的弧长差为:
$$ R \left( \phi _ { 1 } - \phi \right)
$$
那么对应的地图上y的距离差就是$f(\phi_{1}) - f(\phi)$ 所以比例应该是:
$$ s { v } = \frac { 1 } { R } f ^ { \prime } ( \phi ) = \frac { 1 } { R } \lim { \phi { 1 } \rightarrow \phi } \frac { f \left( \phi { 1 } \right) - f ( \phi ) } { \phi _ { 1 } - \phi }
$$
Mercator projection 就是令水平比例等于垂直比例:
$$ f ^ { \prime } ( \phi ) = \frac { w } { 2 \pi } \sec \phi
$$
根据积分表解出来:
$$ y = f ( \phi ) = \frac { w } { 2 \pi } \ln | \sec \phi + \tan \phi |
$$

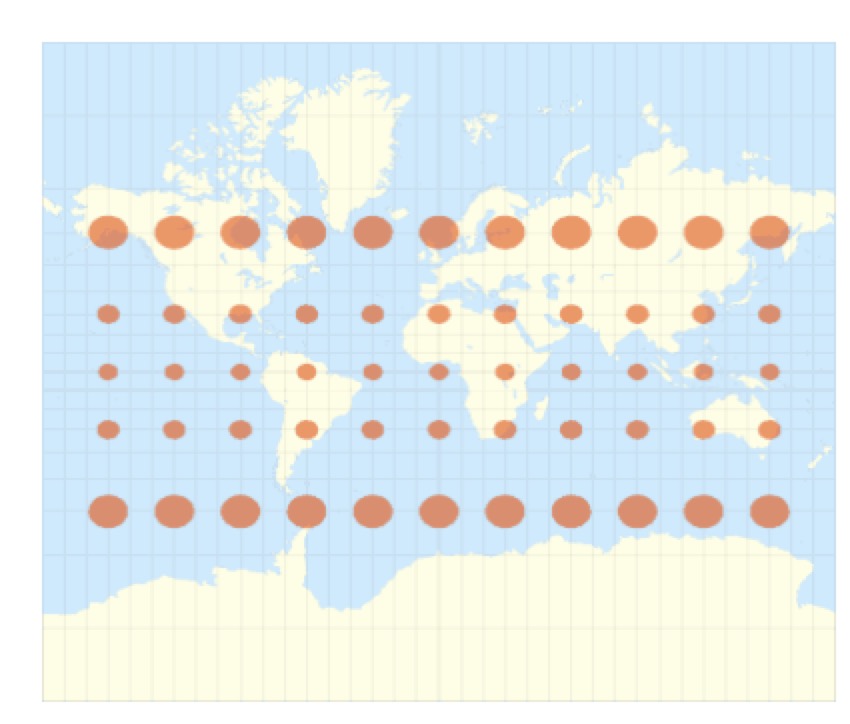

可以看出上下两集的面积都是拉大的，但是形状是不变的
Lambert projection
如果要保持面积不变那么需要$s{v} * s{h} = c$ 也就是保证相乘等与一个常数， 那么:
$$ f ^ { \prime } ( \phi ) \sec \phi = c
$$
然后解出来:
$$ y = \frac { w } { 2 \pi } \sin \phi
$$

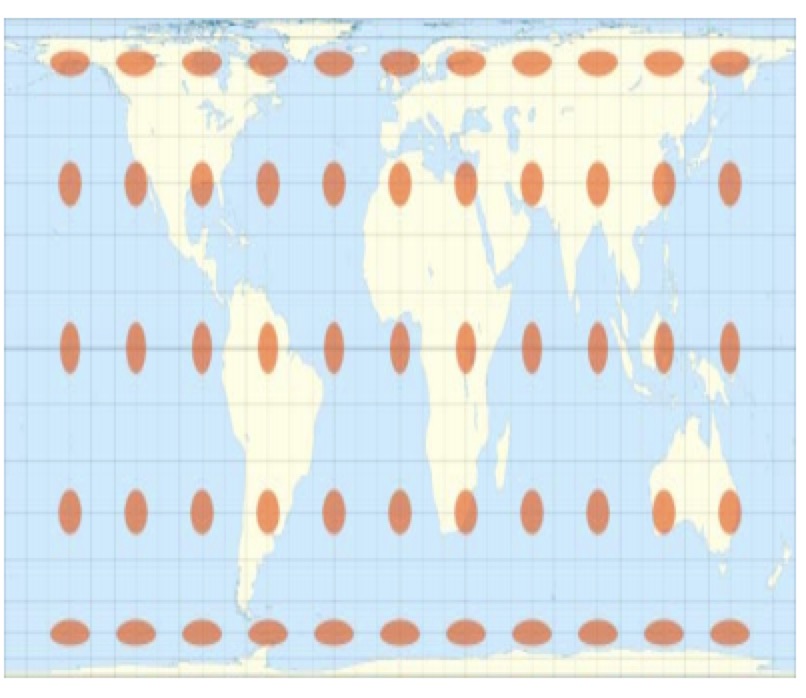

可以看出来变形了:

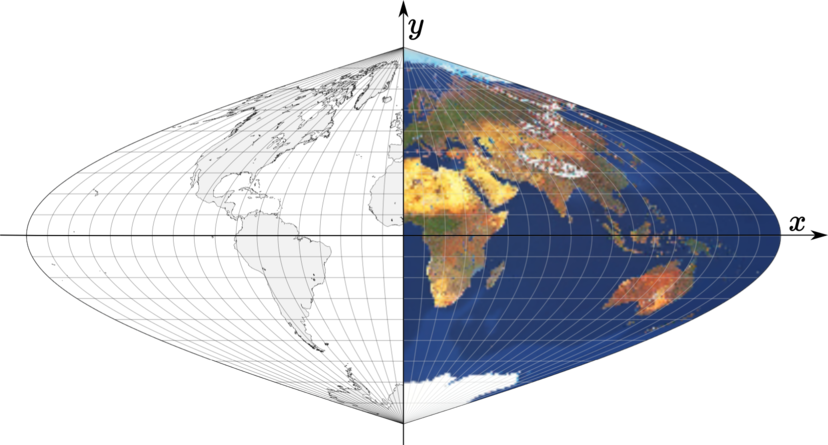

Sinusoidal projection

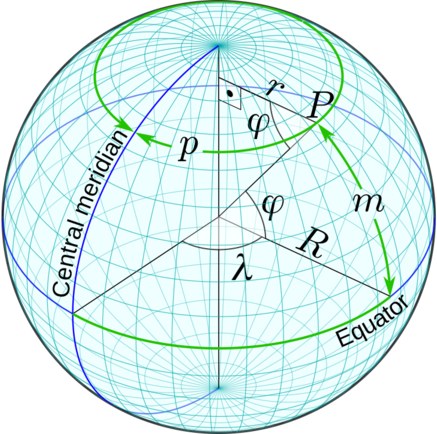

考虑球面一点$P$, 它距离赤道的表面距离是$m = \phi R$(弧度乘以半径=对应的弧长),以此距离作为地图的纵坐标。
$P$点到中心子午线的的"距离"作为很横坐标, 显然这段距离为$p = R\lambda\cos\phi$
因此可以得出公式:
$$ x = R \lambda \cos \phi
$$
$$ y = R \phi
$$
多边形面积
公式
$$ S = \frac { 1 } { 2 } \sum { k = 1 } ^ { m } \left( x { k } y { k + 1 } - x { k + 1 } y _ { k } \right)
$$
算法实现及测试数据
func * (lhs:(Double, Double), rhs:(Double, Double)) -> Double {
return lhs.0 * rhs.1 - rhs.0 * lhs.1
}
func toRadians(degree: Double) -> Double {
return degree * Double.pi / 180
}
let radius = 6371000.0
let lambda0 = toRadians(degree: 0.0)
let phi0 = toRadians(degree: 0.0)
let phi1 = toRadians(degree: 0.0)
let phi2 = toRadians(degree: 60.0)
// Lambert projection
func lambert2car(latitude:Double, longtitude:Double) -> (Double, Double) {
return (radius * longtitude, radius * sin(latitude))
}
// Sinusoidal projection
func sin2car(latitude:Double, longtitude:Double) -> (Double, Double) {
return (longtitude * radius * cos(latitude), latitude * radius)
}
func areaOfPolygon(vertics:[(Double, Double)]) -> Double {
var polygonVertics = [(Double, Double)]()
polygonVertics.append(contentsOf: vertics)
polygonVertics.append(vertics.first!)
let sum = polygonVertics.reduce((pre:(0.0, 0.0), sum: 0.0)) { (acc, x:(Double, Double)) -> ((Double, Double), Double) in
return (pre: x, sum: acc.1 + acc.0 * x)
}
return sum.1 * 0.5
}
func runTest(data: [(testData: [(x:Double, y:Double)], validation: Double)], projections: [(Double, Double) -> (Double, Double)]) -> Void {
for projection in projections {
for unit in data {
let result = areaOfPolygon(vertics: unit.testData.map({ (vector) -> (Double, Double) in
return (toRadians(degree: vector.0), toRadians(degree: vector.1))
}).map({ (latitude, longtitude) -> (Double, Double) in
return projection(latitude, longtitude)
})
)
print("========")
print("result(m^2):", result)
print("validation(m^2):", unit.validation)
print("error(m^2):", result - unit.validation)
print("error rate(%):", (result - unit.validation)/unit.validation * 100)
}
}
}
runTest(data: [
(// 紫金山
[
(32.09237231228167,118.85816641151905),
(32.08888191941637,118.85756559669971),
(32.091936020465305,118.85310240089893),
(32.08902735511446,118.84426183998585),
(32.085754995919906,118.8418585807085),
(32.08408241152431,118.83396215736866),
(32.08146439188813,118.83224554359913),
(32.07840994086831,118.8323313742876),
(32.07528265908702,118.83138723671436),
(32.06590017191265,118.82040090858936),
(32.06581208291123,118.81746443495001),
(32.064866506642154,118.81694945081915),
(32.060065737860235,118.82029684766974),
(32.053446082872,118.81995352491583),
(32.050899934194696,118.82845076307501),
(32.044497875968844,118.83102568372931),
(32.038968465311164,118.8288799165174),
(32.04180596776272,118.83849295362677),
(32.03984155235566,118.8482776521131),
(32.04020533616681,118.85145338758673),
(32.036058115030464,118.85677489027228),
(32.036785711273424,118.85909231886114),
(32.04035084928652,118.85694655164923),
(32.03955052426596,118.86441382154669),
(32.04209698868248,118.87248190626349),
(32.046171184413666,118.87711676344122),
(32.04937221098288,118.8838115571424),
(32.05366432089069,118.88664396986212),
(32.058901877180745,118.88793143018927),
(32.06362996907811,118.88715895399298),
(32.065084717418095,118.88990553602423),
(32.06966702344827,118.88896139845099),
(32.07461274689404,118.88501318678107),
(32.08261261546742,118.879777514784),
(32.09250239412376,118.87497099622931),
(32.088139388420466,118.87050780042853),
(32.091993387526806,118.8641563294812)
],
29008610.93),
(// 凹多边形
[
(33.970116789904445,118.29517536591902),
(33.96335424162145,118.29732113313094),
(33.96641525113789,118.3102815670909),
(33.97275068954864,118.3053035515296)
], 878292.97),
(
[
(32.08810117348784,118.76541372224733),
(32.05988202935582,118.766615351886),
(32.06337352956128,118.8047241775696),
(32.08897379166003,118.80300756380007),
(32.0741381495211,118.79236455842897),
(32.07253808349195,118.7786316482727)
], 6594696.67)
],
projections: [sin2car(latitude:longtitude:), lambert2car(latitude:longtitude:)])
